2000 kVA Three-Phase Pad Mounted Transformer
Fast-track your project with Apexto 2000 kVA padmount transformers. Built for ~1.6MW heavy compute & storage loads. In-stock units ready for immediate dispatch.
Contact us for price
Apexto is now offering U.S.-based inventory and DDP (Delivered Duty Paid) shipping for customers in the U.S. For more details, pls. contact our sales team.
Order 2 or more machines to save on shipping costs! Contact our sales team now to secure the best rates.
Trusted by
Payment Method
- USD
- USDT(TRC 20)
- KAS
- BTC
- ETH
- LTC
- DOGE
- USDC(ERC20)
2000 kVA 3-Phase Transformer For Crypto Mining & Data Centers
Key specifications at a glance for quick reference and confident planning.
Rated Capacity
2000 kVA
Feed Type
Loop / Radial
Cooling Medium
ONAN
Frequency
60 Hz
Installation
Outdoor Pad-Mounted
WAREHOUSE LOCATIONS
USA • Canada • UAE • China • Global Dispatch
FAST DISPATCH
Ready Stock • Ships in 1-3 Days • DDP Door-to-Door
Product Profile
The Apexto 2000 kVA Three-Phase Pad-Mounted Transformer provides a full 2 MVA power block for sites with high continuous electrical demand. It is intended for larger industrial facilities, high-density computing infrastructure, and mining projects where smaller transformer capacities would require multiple units or leave insufficient operating margin.
At this power level, secondary current, thermal management, and protection coordination become increasingly important. The transformer can therefore be engineered around the required primary voltage, secondary voltage, impedance, feed configuration, and downstream distribution equipment.
The 2000 kVA model is a strong option when a project needs substantial capacity in a single transformer while maintaining a practical outdoor pad-mounted layout.
Core Advantages

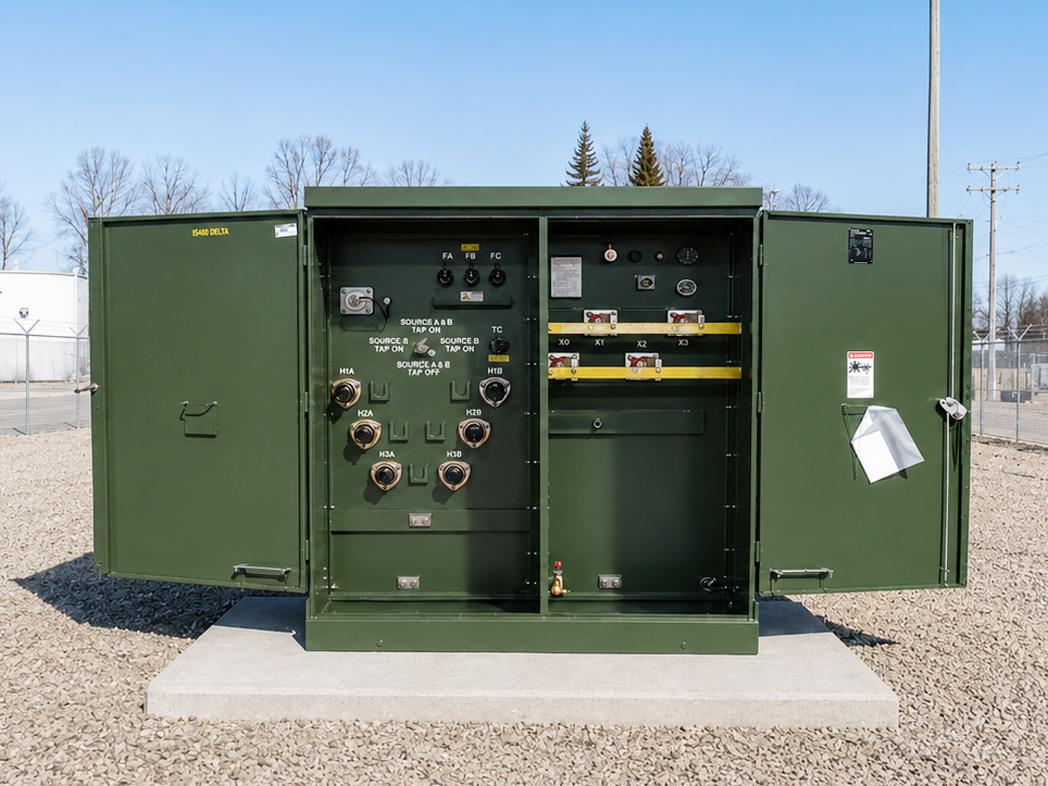

01. 6-Bushing Loop Feed System
Equipped with six dead-front high-voltage bushings (H1A–H3B) to support loop-feed daisy-chaining, enabling continuous power flow and flexible on-site cable routing.
02. Precision Gauge Suite
Features precision liquid level, oil temperature, and vacuum/pressure gauges alongside an automatic pressure relief valve (PRV) for continuous real-time monitoring.
03. 4-Position Load-Break Switch
Integrated four-position load-break switch (Source A/B) allows operators to select, transfer, or isolate incoming power sources safely without disrupting site power.
04. Low-Loss Core & Windings
Engineered with premium grain-oriented silicon steel cores and precision-wound heavy-duty coils, delivering ultra-low losses and superior short-circuit ride-through.
05. Heavy-Duty LV Spade Busbars
Features multi-hole tin-plated NEMA spade terminals (X0–X3) optimized for heavy continuous current throughput, reducing contact heat and easing multi-cable landing.
06. C5-M Enclosure & Radiators
Protected by a weather-sealed steel enclosure with C5-M marine-grade anti-corrosion coating and robust radiator banks, built for decades of harsh outdoor operations.
Full Specifications
External dimensions
L:2000mm、W:2130mm、H:1910mm
Internal dimensions
L:1950mm、W:1980mm、H:1860mm
Weight
5180KG
| Rated Capacity | 2000 kVA / 2 MVA | Phase | Three Phase |
| Transformer Type | Pad-Mounted Transformer | Installation | Outdoor |
| Voltage Class | Up to 35 kV* | Primary Voltage | Project-Specific |
| Secondary Voltage | Project-Specific | Frequency | 60 Hz |
| Cooling Method | ONAN | Insulating Fluid | Mineral Oil* |
| Enclosure Type | Tamper-Resistant, Compartmentalized | Feed Configuration | Loop Feed / Radial Feed |
| Primary Connection | Dead-Front | Temperature Rise | 55/65°C |
| Overcurrent Protection | Project-Specific | Sectionalizing Switching | Available / Project-Specific |
Engineering Documents
Padmount Spec Sheet
Padmount Dimensional Drawings
Padmount Installation Manual
Padmount Test & Warranty Guide
Certifications & Grid Compliance
Fully compliant with UL, CSA, IEEE/ANSI, DOE, and IEC standards. Tested and certified by international authorities to ensure maximum safety, efficiency, and instant approval by local power utilities.
UL/cUL
CSA
CESI
IEEE
IEC
EN00676
AS-NZS
GOST
Infrastructure Capabilities
We supply a full lineup of pad-mount transformers built for heavy-duty power. From 24/7 crypto mining farms to mission-critical data centers, we deliver reliable equipment designed to run non-stop.
We also offer custom engineering tailored to your exact site. From specific high and low voltages to specialized enclosure specs, we customize and deliver units in as fast as 4–6 weeks to get your project powered up on schedule.
Design
Raw Material Procurement
Assembly
Testing
Packaging
Delivery
Request a Project Quote
Tell us about your project or custom requirements. Our power systems engineers will review your specs and provide a tailored proposal.
Submit Inquiry ➔Global Project References
View All >>
West Texas, USA
6 x 2000 kVA Pad-Mounted Transformers for Mega Mining Park
Six 2000 kVA (2 MVA) padmount units deployed in parallel to power a high-density multi-container hydro mining park, operating non-stop under extreme desert heat.
34.5kV
415Y/240V
99.48% Efficiency
California, USA
12000 kVA (2 MVA) Pad-Mounted Transformer for Fast-Track BESS
Liquid-filled 2000 kVA transformer delivered via rapid USA stock dispatch for a commercial battery energy storage (BESS) and microgrid integration project.
2000 kVA
12.47 kV
480Y/277V
Columbus, Ohio, USA
2000 kVA Pad-Mounted Transformer for Enterprise AI Facility
Three-phase 2000 kVA padmount unit installed to provide ~1.6MW of stable, continuous power for an enterprise AI compute cluster and high-capacity liquid cooling.
13.8 kV Delta
415Y/240V
ONAN 2000 kVA
Calgary, Alberta, Canada
2000 kVA Pad-Mounted Transformer for Sub-Zero Canadian Grid
Heavy-duty 2000 kVA step-down transformer engineered for extreme sub-zero winter reliability, interconnecting a facility with the Canadian 600V utility grid.
2000 kVA
24.94 kV GrdY
600Y/347V
Capabilities & Support
24-Month Quality Warranty
Enjoy peace of mind with our 24-month full warranty. If any operational issue arises with your transformer, our dedicated engineering team will resolve it rapidly and reliably.
Local Field Service Team
Whether in North America or global regions, our certified local engineering teams provide professional on-site transformer installation, energization testing, and maintenance.
24/7 Remote Video Support
Connect directly with our senior power engineers via live video for real-time installation guidance, system diagnostics, and instant troubleshooting support, anytime and anywhere.
Spare Parts & Support
We maintain an extensive inventory of genuine spare parts for fast dispatch, paired with lifetime technical guidance to maximize your equipment uptime.
Need a Customized Power & Transformer Solution?
Talk to our engineers to get an optimized configuration and fast quote.
Contact SalesFAQs
How many amps does a 2000 kVA transformer provide at 480V?
A 2000 kVA three-phase transformer provides approximately 2,406A at 480V at full load. This value is important when sizing the main switchboard, breakers, cables, busways, and downstream distribution equipment.
Is a 2000 kVA transformer suitable for Bitcoin mining or data center projects?
Yes. 2000 kVA is well suited to high-density mining, data center, and industrial power blocks where large continuous loads require reliable medium-voltage to low-voltage distribution.
When should I choose 2000 kVA instead of 1500 kVA?
Choose 2000 kVA when the planned load approaches the practical capacity of a 1500 kVA transformer or when additional miners, cooling systems, racks, or future expansion are expected. The larger capacity provides more flexibility for project growth.
Can a 2000 kVA transformer provide 480Y/277V secondary power?
Yes. 480Y/277V is a common secondary configuration for 2000 kVA pad-mounted transformers used in mining, data center, commercial, and industrial distribution systems.
Can Apexto match the transformer to my utility voltage?
Yes. Apexto can configure the primary voltage according to the site's utility supply and project requirements, including common medium-voltage systems such as 12.47kV, 13.2kV, 13.8kV, 24.94kV, and 34.5kV.
How does Apexto confirm the transformer specifications before production?
Before production, key specifications such as primary and secondary voltage, winding connection, impedance, BIL, feed configuration, terminations, and required accessories are confirmed against the project requirements.
What technical documents are available for project review?
Apexto can provide the relevant technical data, product drawings, specification documents, and installation information** for engineering review and site planning based on the confirmed transformer configuration.
Can Apexto supply a 2000 kVA transformer for an existing replacement project?
Yes. Provide the existing transformer nameplate, dimensions, pad layout, cable-entry locations, and available drawings. Apexto can review these details before production to help match the replacement unit to the existing site.
What information does Apexto need before quoting?
Primary voltage, secondary voltage, total load, application, loop/radial feed, termination type, impedance/BIL requirements, and any existing utility or EPC specification.
Recommended Capacities
Discover our full lineup of three-phase pad-mounted transformers built for projects of any scale.
View All >>
1000KVA
1000 kVA Pad Mount Three-Phase Transformer
| Primary Voltage | 2.4 kV – 34.5 kV Class |
| Secondary Voltage | 120 V – 600 V Range |
| Availability | USA & China |
1500KVA

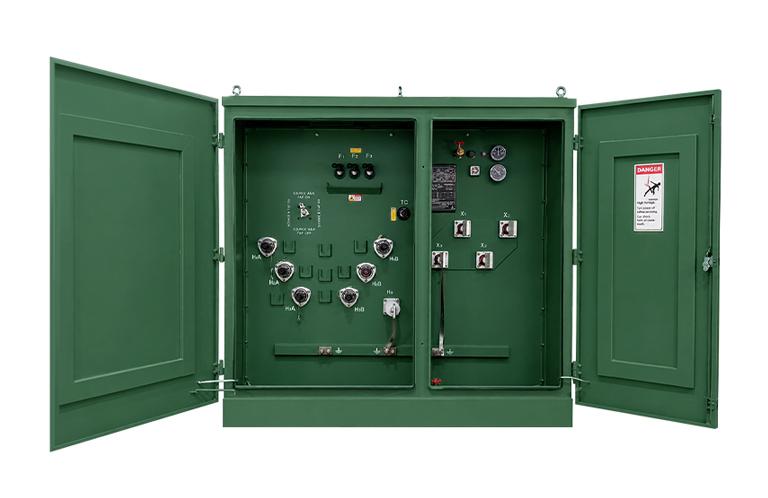

1500 kVA Pad Mount Three-Phase Transformer
| Primary Voltage | 2.4 kV – 34.5 kV Class |
| Secondary Voltage | 120 V – 600 V Range |
| Availability | USA & China |
2500KVA
2500 kVA Pad Mount Three-Phase Transformer
| Primary Voltage | 2.4 kV – 34.5 kV Class |
| Secondary Voltage | 120 V – 600 V Range |
| Availability | USA & China |
3000KVA
3000 kVA Pad Mount Three-Phase Transformer
| Primary Voltage | 2.4 kV – 34.5 kV Class |
| Secondary Voltage | 120 V – 600 V Range |
| Availability | USA & China |
