20-Slot 200kW Antminer 2U Hydro Cooling System
In stock
40-Slot Antminer Hydro Cooling Rack
40-slot 230kW integrated hydro cooling rack with a two-tier design and dry cooler. Plug-and-play with no piping needed. Perfect for home and industrial mining sites.
Contact us for price
In stock
Apexto is now offering U.S.-based inventory and DDP (Delivered Duty Paid) shipping for customers in the U.S. For more details, pls. contact our sales team.
Order 2 or more machines to save on shipping costs! Contact our sales team now to secure the best rates.
Trusted by
Payment Method
- USD
- USDT(TRC 20)
- KAS
- BTC
- ETH
- LTC
- DOGE
- USDC(ERC20)
All-in-one integrated deployments for up to 40 hydro-cooled ASICs
CONTAINER CAPACITY
ASIC MINERS
40 UNITS
Housed at full load
TOTAL POWER
230 KW
Continuous electrical load
FORM FACTOR
Custom
Standard
COOLING
Hydro
Thermal management
POWER INPUT
380V–415V AC 50/60Hz
AVAILABILITY
Typical lead time 15 days • DDP Sea Shipping Available
⚙ Compatible Models View More ›
Antminer S19 XP Hyd. ➔
257 Th/s · 20.6 J/Th
40 Slots
Full‑load: $378.80/day
Antminer S19 Pro+ Hyd. ➔
198 Th/s · 27.5 J/Th
40 Slots
Full‑load: $292.00/day
Antminer S19 XP+ Hyd ➔
293 Th/s · 19 J/Th
40 Slots
Full‑load: $432.00/day
Antminer S19e XP Hyd ➔
251 Th/s · 22 J/Th
40 Slots
Full‑load: $370.00/day
Antminer S21 Hyd ➔
335 Th/s · 16 J/Th
40 Slots
Full‑load: $494.00/day
Antminer S21 XP Hydro ➔
473 Th/s · 12 J/Th
40 Slots
Full‑load: $697.60/day
Antminer S21 XP+ Hyd ➔
500 Th/s · 11 J/Th
40 Slots
Full‑load: $737.20/day
Antminer S21+ Hydro ➔
358 Th/s · 15 J/Th
40 Slots
Full‑load: $528.00/day
Antminer S21e Hydro ➔
310 Th/s · 17 J/Th
40 Slots
Full‑load: $457.20/day
Antminer S21e XP Hyd ➔
430 Th/s · 13 J/Th
40 Slots
Full‑load: $634.00/day
Antminer S21j XP Hyd ➔
495 Th/s · 12 J/Th
40 Slots
Full‑load: $730.00/day
Antminer S23 Hyd ➔
580 Th/s · 9.5 J/Th
40 Slots
Full‑load: $855.20/day
Show 8 more models
Product Description
The Integrated 230kW 40-Slot Hydro Cooling Cabinet is an all-in-one infrastructure designed for high-density Bitcoin mining. Delivering 230kW of cooling capacity within a compact footprint, this system provides a stable operating environment for up to 40 Antminer hydro series miners.
The cabinet features a vertical two-tier structure, integrating a 230kW dry cooler on the upper level and the mining hardware on the lower level. This factory-assembled design eliminates the need for complex external piping, offering a true plug-and-play experience. Once on-site, the system only requires a power connection and initial liquid filling to begin operation.
By combining the cooling tower and miner rack into a single unit, this cabinet significantly reduces land area requirements and simplifies deployment. Equipped with intelligent monitoring for constant temperature and pressure, it is a practical choice for both residential and industrial mining environments.
Core Advantages

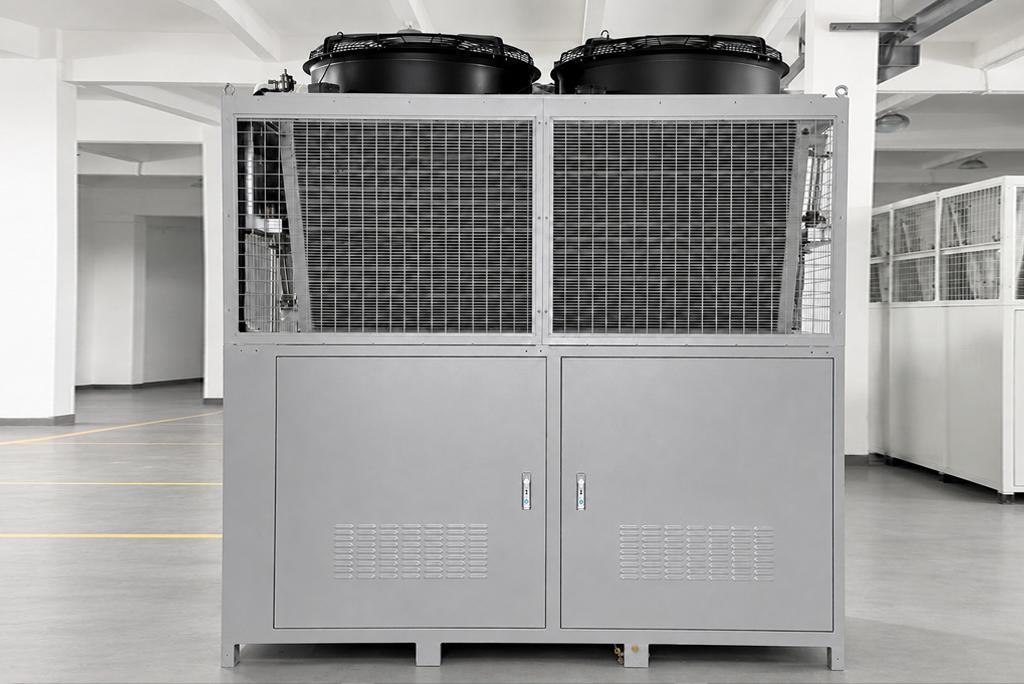

01. Integrated Vertical Architecture
The system features a unique vertical two-tier structure, integrating the 230kW dry cooler on top and the miner rack below. This all-in-one design maximizes space efficiency and allows for high-density cooling in a compact footprint.

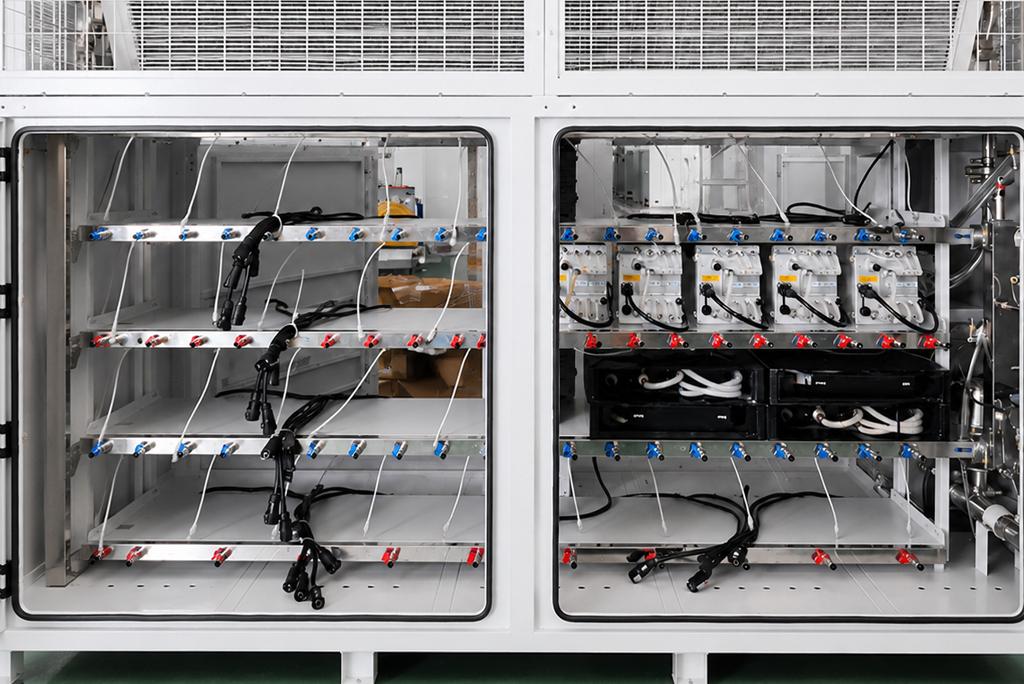

02. Symmetrical Dual-Rack Layout
Features two side-by-side cabinets, each housing 20 miners for a total 40-slot capacity. This layout ensures organized hose management and balanced coolant flow, maintaining thermal stability across all mining nodes.

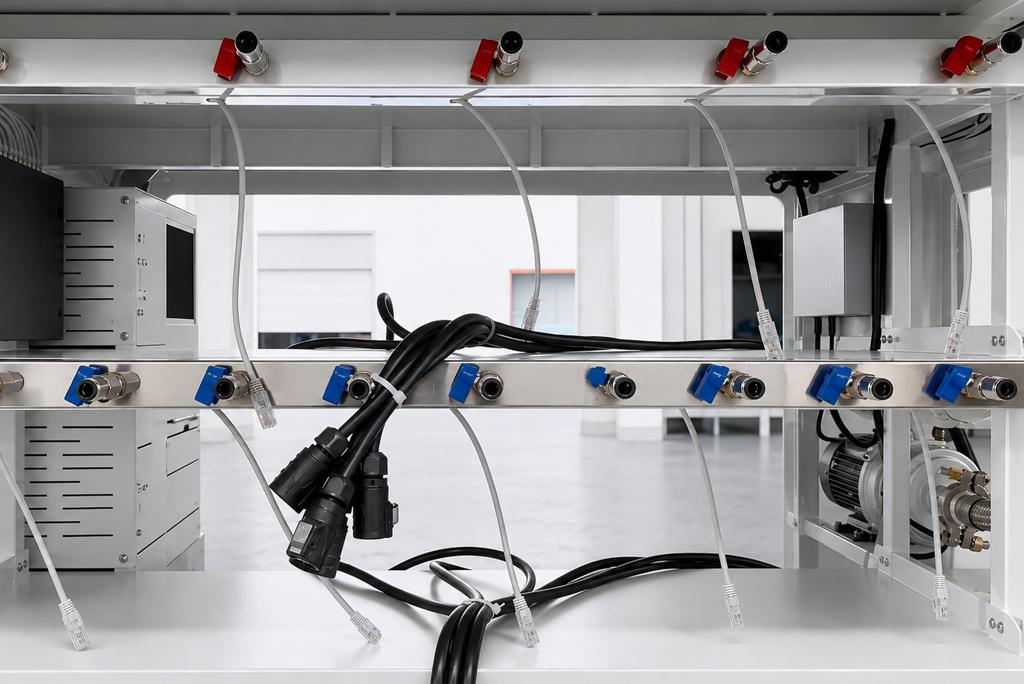

03. Factory-Grade Connectivity
Equipped with original Bitmain-standard aviation plugs and pre-wired network cables. These high-quality components ensure secure, high-current power delivery and stable data transmission, enabling seamless, reliable operation straight out of the box.

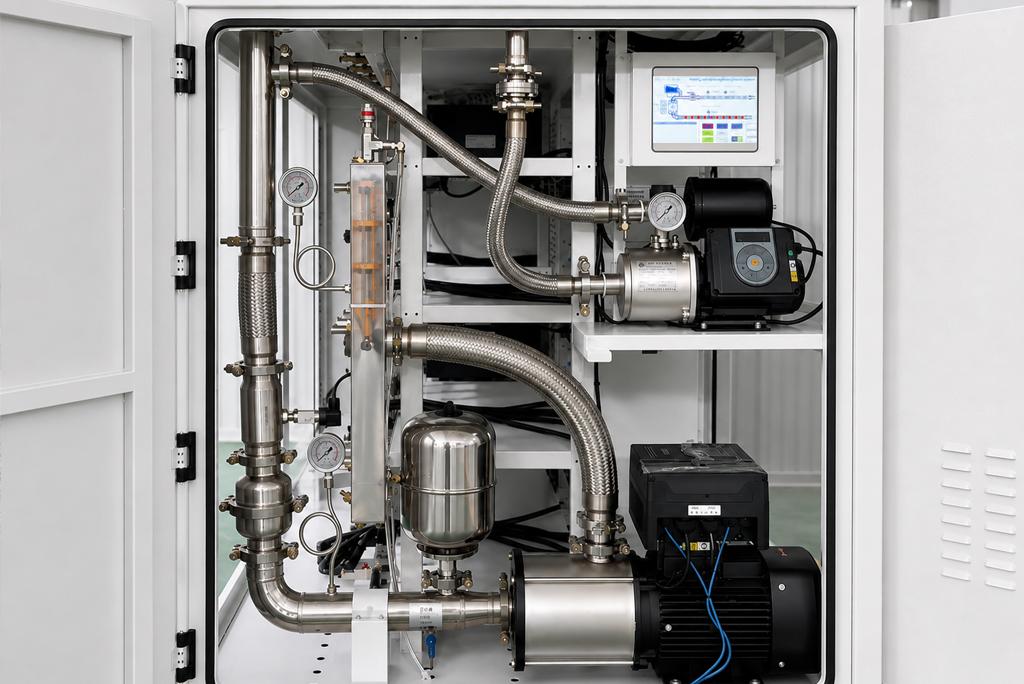

04. Integrated CDU Module
The factory-pre-assembled Coolant Distribution Unit (CDU) simplifies deployment. Upon arrival, the system requires only initial liquid filling and power-on to begin operation, eliminating complex on-site plumbing and significantly reducing setup time.

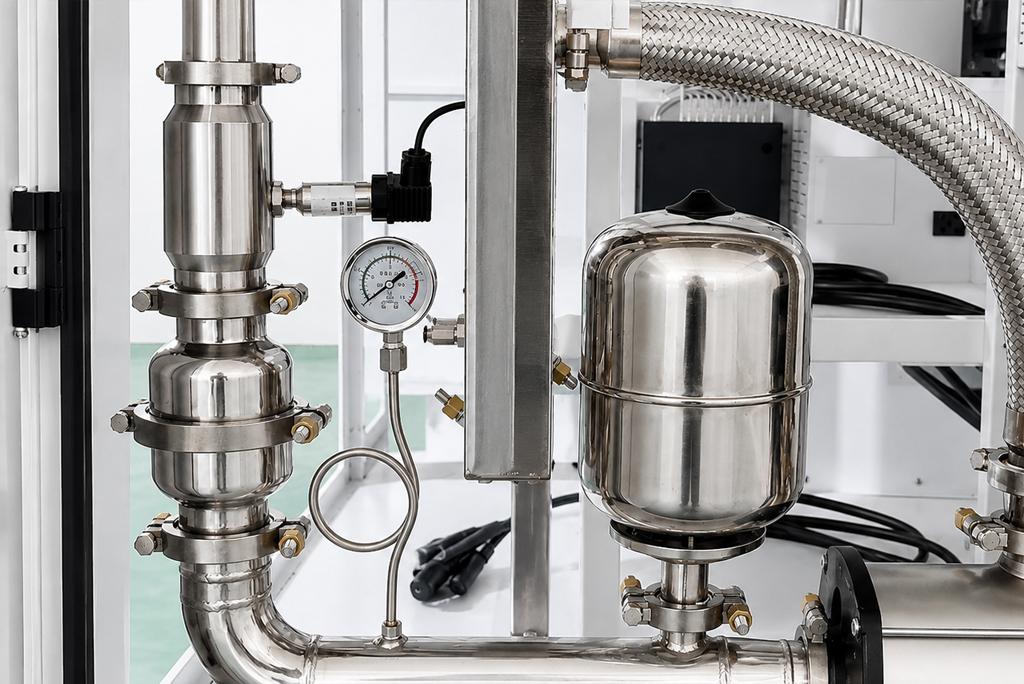

05. Durable Industrial Piping
Crafted with high-quality 304 stainless steel manifolds and precision-engineered joints. This robust internal network is built to withstand high pressure and resist corrosion, ensuring long-term reliability and a leak-free environment for continuous mining.

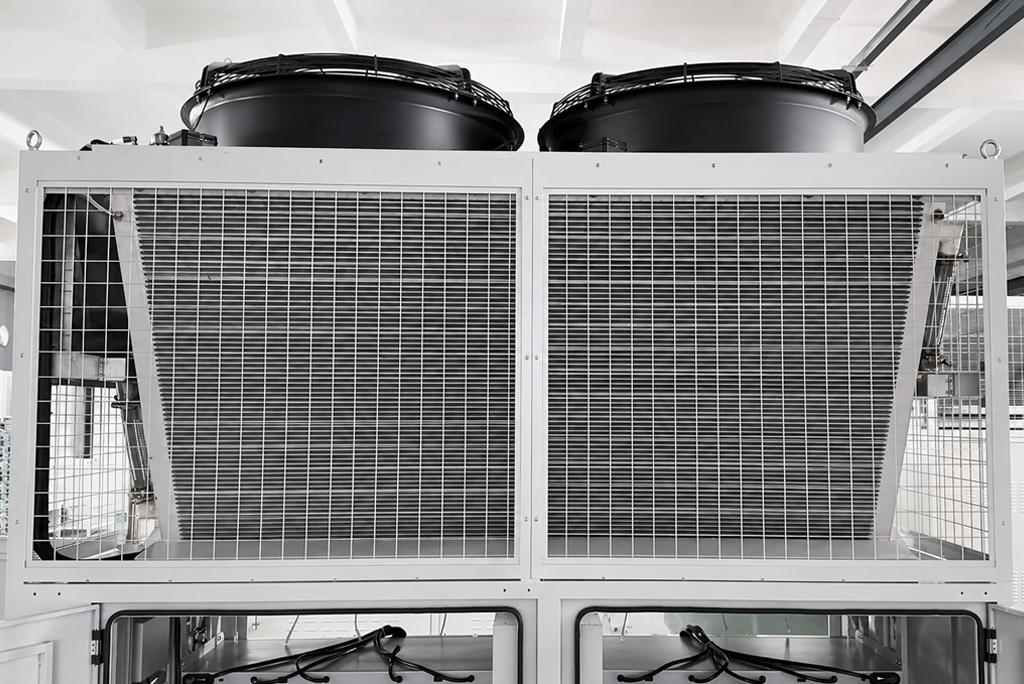

06. Fully Automated Dry Cooler
Equipped with smart features for automatic liquid refill, temperature control, and fan speed regulation. The integrated pressure relief system maintains an optimal thermal balance, ensuring consistent cooling efficiency and hardware safety.
Full Specifications
External dimensions
L:2500m、W:1200mm、H:2640mm
Internal dimensions
L:2450mm、W:1150mm、H:2600mm
Weight
1226KG
| Model | AP-A40 | Installed capacityCooling capacity | 40 Seat |
| Cooling capacity | 230KW | Fans | 2 × 4kW |
| Pump system | 1 main + 1 refill | Tubing | 80× FEP hoses |
| Power input | 630A MCCB | Control | 7-inch HMI |
| Protection | NEMA 4 | Wiring | TN-S system |
| System Size (Operating) | 2500 × 1200 × 2640 mm | Operating temperature | 10°C to 35°C Best Not suitable for extreme heat / dust / storm environments |
| Site Requirements | Floor load ≥ 1000 kg/m² Flat and stable ground No vibration source Clean air environment preferred | Clearance requirements | Side clearance: 2–3 meters Top clearance: ≥5 meters No obstruction above dry cooler exhaust |
40-Slot Antminer Hydro Cooling Rack Product Brochure
Complete product specifications, installation guide, and operational instructions.
Certification Standards
Our products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Complete Cooling Solutions
We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.
| ❄️ Cooling Capacity |
| ⚙️ Miner Slots |
| 📏 Dimensions (L × W × H) |
| 🏢 Application |
Compare
40-Slot Antminer Hydro Cooling Rack
| 230 kW |
| 40 Slots |
| 2,500 × 1,200 × 2,640 mm |
| Space-Efficient Mining |
36-Slot Antminer Hydro Cooling Rack
| 200 kW |
| 36 Slots |
| 2,230 × 8,00 × 2,370 mm |
| Professional Home Mining |
34-Slot Antminer Hydro Cooling Rack
| 200 kW |
| 34 Slots |
| 1,350 × 8,00 × 2,250 mm |
| Small-Scale Mining |
28-Slot Antminer Hydro Cooling Rack
| 154 kW |
| 28 Slots |
| 1,750 × 1,000 × 2,200 mm |
| Home & Personal Mining |
40-Slot Antminer Hydro Cooling Rack FAQs
How difficult is the installation process for this cabinet?
The system is designed for a true plug-and-play experience. Since the dry cooler is integrated into the two-tier structure, no external piping or professional plumbing is required. You only need to complete the initial liquid filling and connect the power to begin operation.
Is this cabinet suitable for home or residential use?
Yes. Its vertical, space-saving design is ideal for limited spaces like garages or small workshops. Because it uses a closed-loop hydro system instead of loud industrial fans or a water tower, it operates quietly and fits easily into non-industrial environments.
How does the intelligent control system manage mining stability?
The cabinet is equipped with a 7-inch touchscreen HMI and an automated control system. It uses variable frequency technology to automatically adjust pump and fan speeds based on real-time temperature and pressure, ensuring a stable, constant thermal environment for your miners.
What kind of maintenance does this system require?
Maintenance is minimal because it is a waterless evaporation system. You don't need to manage a constant water supply or clean out mineral buildup from a cooling tower. Periodically checking the coolant levels and ensuring the fan area is clear of debris is usually all that is required.
How is this system shipped and delivered?
The cabinet is shipped as a compact, integrated unit. To comply with international shipping height limits and protect the cooling fins from damage, the fan module is detached for transport. Upon delivery, it can be easily bolted back onto the top of the cabinet with standard tools.
