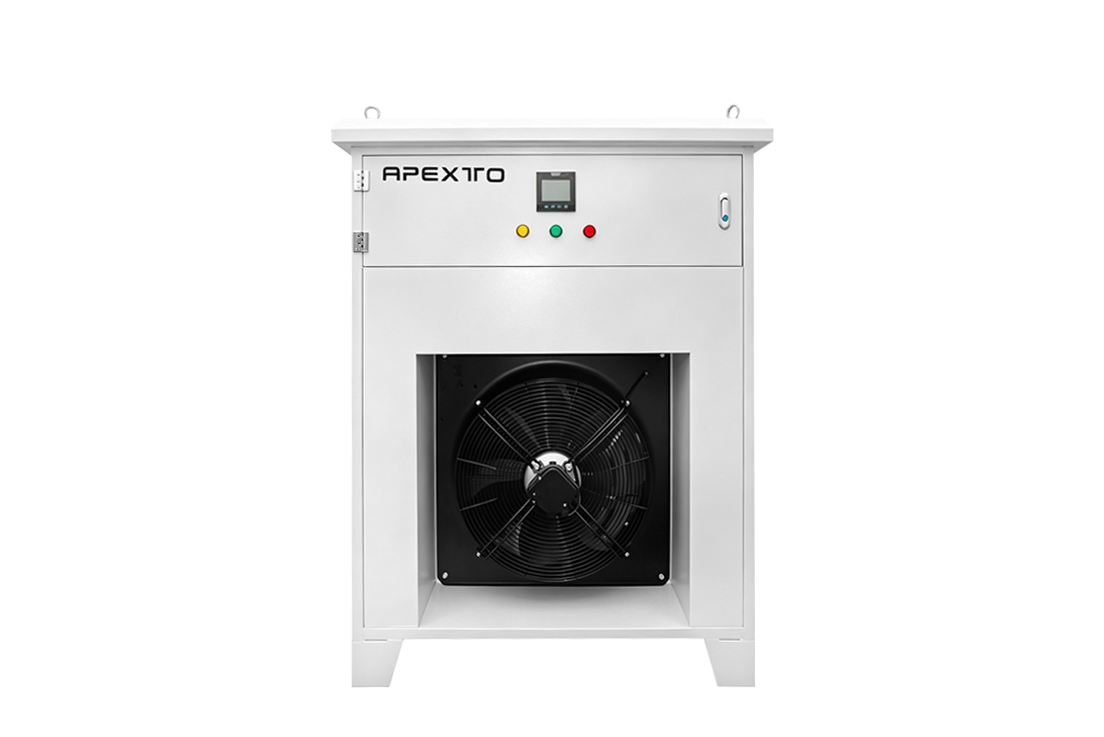

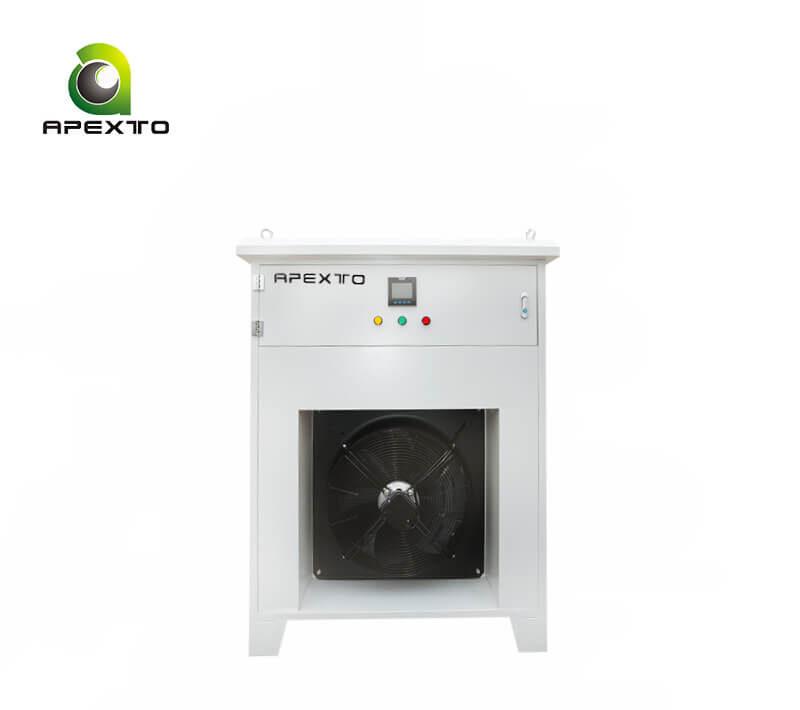

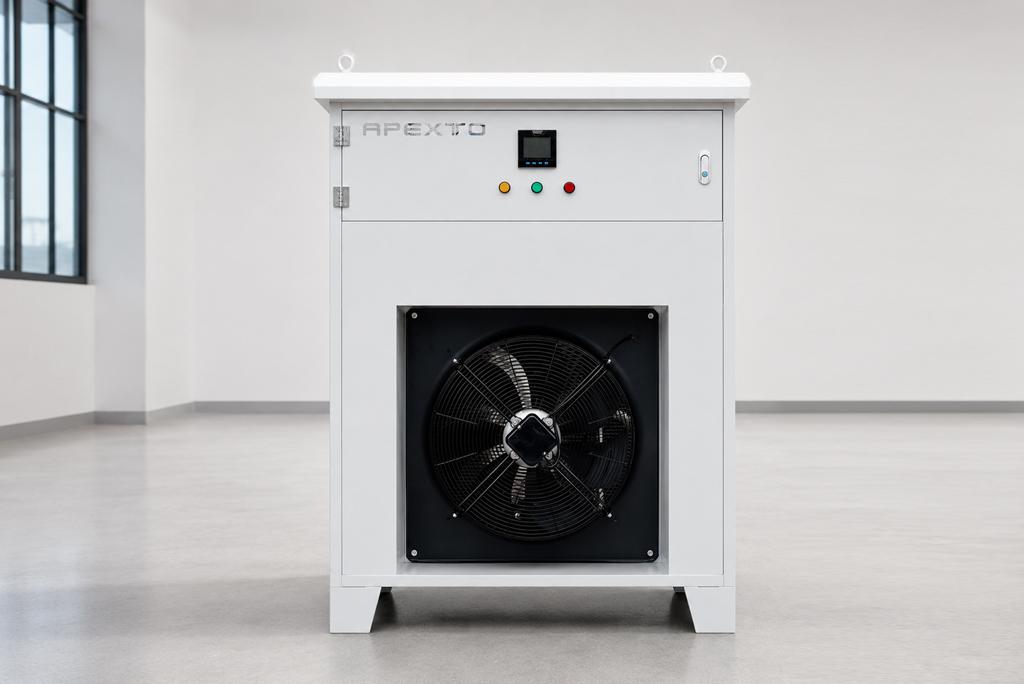

Apexto 4-Slot 26kW Antminer Water Cooler For Home Bitcoin Mining

Compact entry-level cooling hub for up to 4 hydro-cooled Antminer units

CONTAINER CAPACITY

ASIC MINERS

4 UNITS

Housed at full load

TOTAL POWER

26 KW

Continuous electrical load

FORM FACTOR

Custom

Standard

COOLING

Hydro

Thermal management

POWER INPUT

380V–415V AC 50/60Hz

AVAILABILITY

In stock, ready to ship • DDP Sea Shipping Available

⚙ Compatible Models View More ›

Antminer S19 XP Hyd. ➔

257 Th/s · 20.6 J/Th

4 Slots

Full‑load: $37.88/day

Antminer S19 Pro+ Hyd. ➔

198 Th/s · 27.5 J/Th

4 Slots

Full‑load: $29.20/day

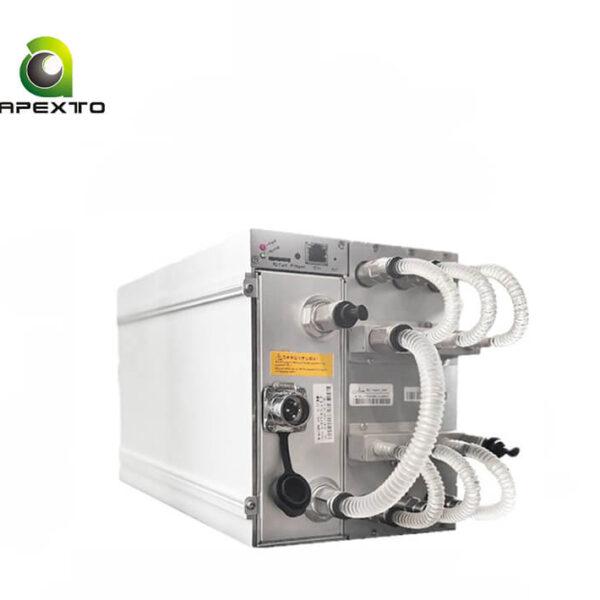

Antminer S19 XP+ Hyd ➔

293 Th/s · 19 J/Th

4 Slots

Full‑load: $43.20/day

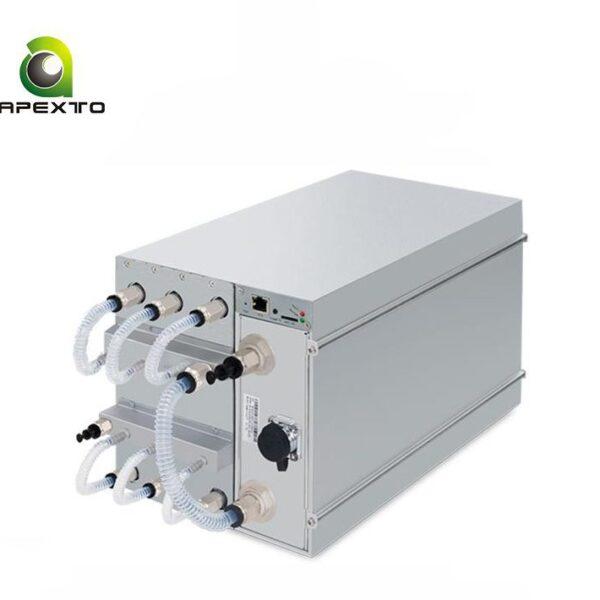

Antminer S19e XP Hyd ➔

251 Th/s · 22 J/Th

4 Slots

Full‑load: $37.00/day

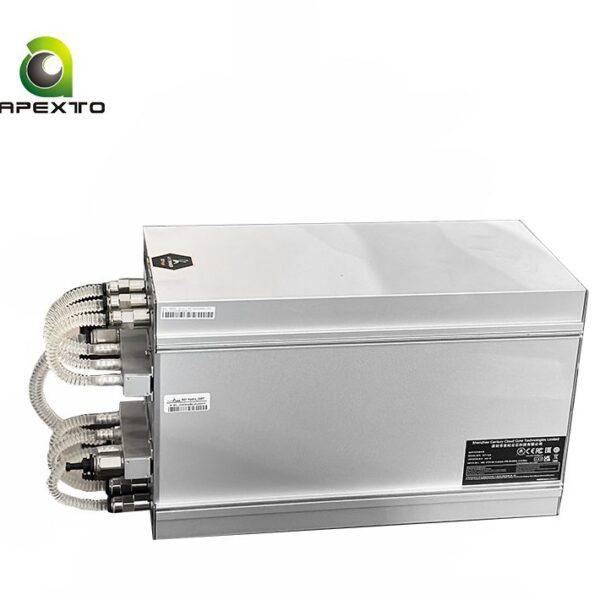

Antminer S21 Hyd ➔

335 Th/s · 16 J/Th

4 Slots

Full‑load: $49.40/day

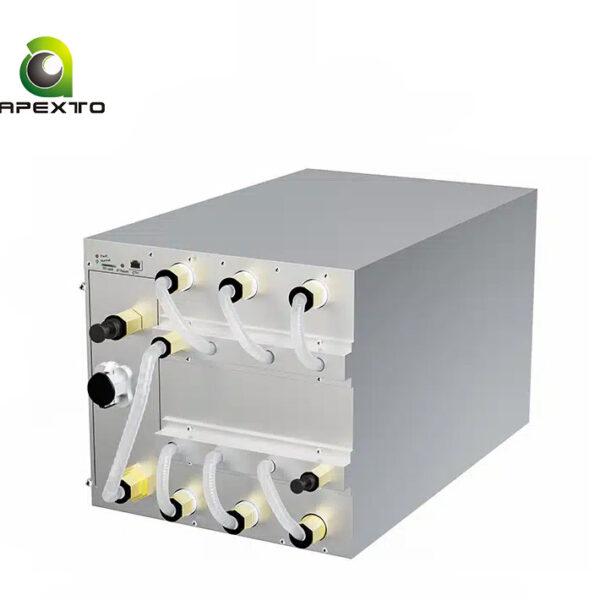

Antminer S21 XP Hydro ➔

473 Th/s · 12 J/Th

4 Slots

Full‑load: $69.76/day

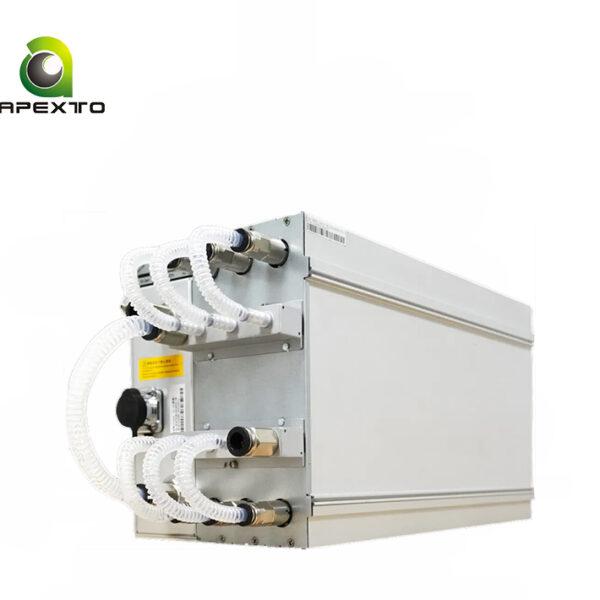

Antminer S21 XP+ Hyd ➔

500 Th/s · 11 J/Th

4 Slots

Full‑load: $73.72/day

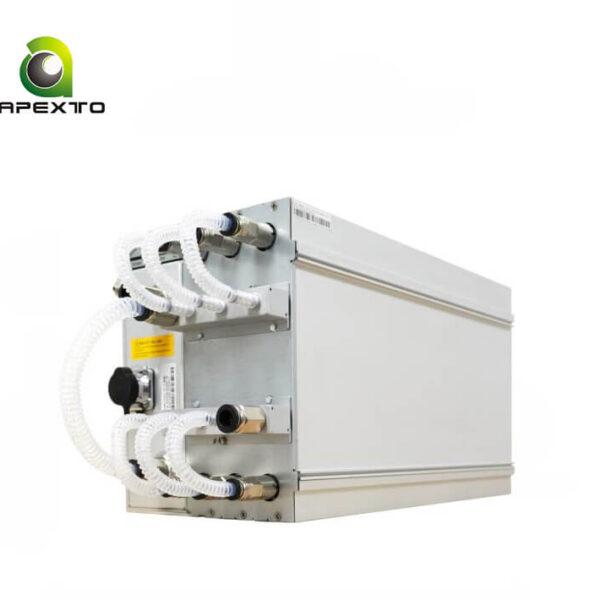

Antminer S21+ Hydro ➔

358 Th/s · 15 J/Th

4 Slots

Full‑load: $52.80/day

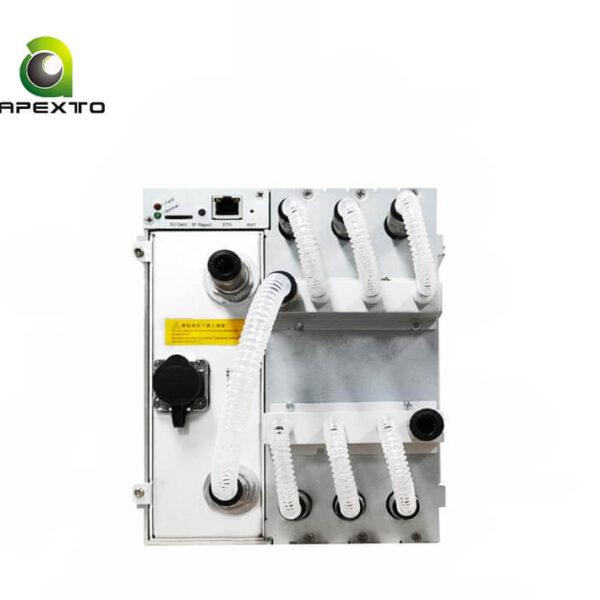

Antminer S21e Hydro ➔

310 Th/s · 17 J/Th

4 Slots

Full‑load: $45.72/day

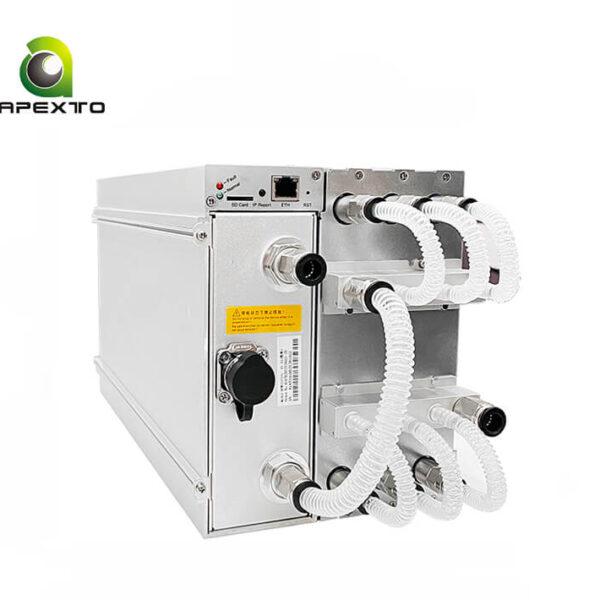

Antminer S21e XP Hyd ➔

430 Th/s · 13 J/Th

4 Slots

Full‑load: $63.40/day

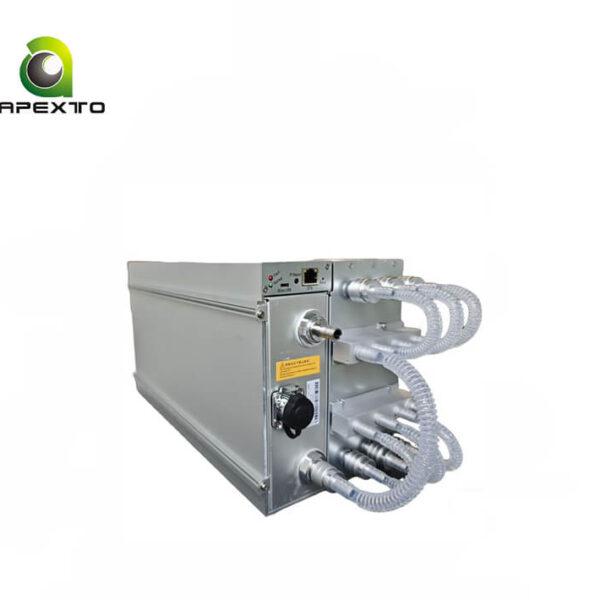

Antminer S21j XP Hyd ➔

495 Th/s · 12 J/Th

4 Slots

Full‑load: $73.00/day

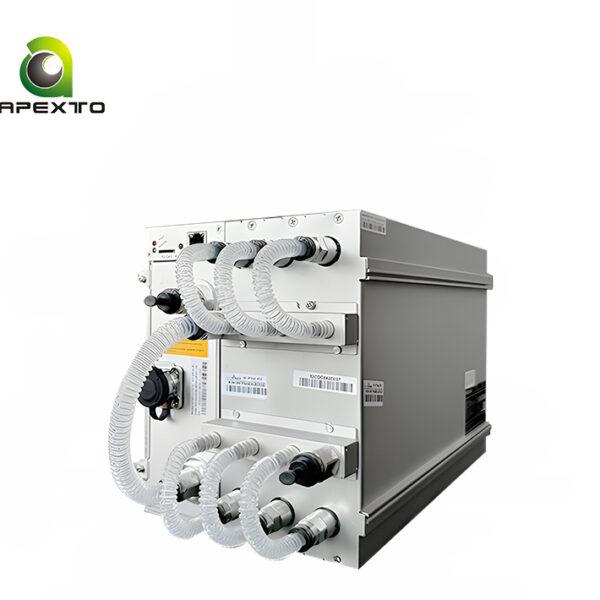

Antminer S23 Hyd ➔

580 Th/s · 9.5 J/Th

4 Slots

Full‑load: $85.52/day

Show 8 more models

Product Description

The 4-Slot 26kW Antminer Hydro Cooling Rack is designed for miners who want to start with a compact hydro cooling setup without committing to a large installation. Supporting up to 4 Antminer hydro miners, it provides dedicated space for the machines while keeping the cooling system organized in a small footprint.

With 26kW of cooling capacity, the rack is suitable for home workshops, small mining rooms, testing environments, and other sites where available space is limited. Its compact format also makes it easier to plan around existing power, ventilation, and installation conditions.

Rather than building a cooling system around more capacity than you currently need, the 4-slot rack provides a practical starting point that can match a smaller mining operation. It is a straightforward option for getting a few Antminer hydro miners running with a dedicated cooling setup.

Core Advantages

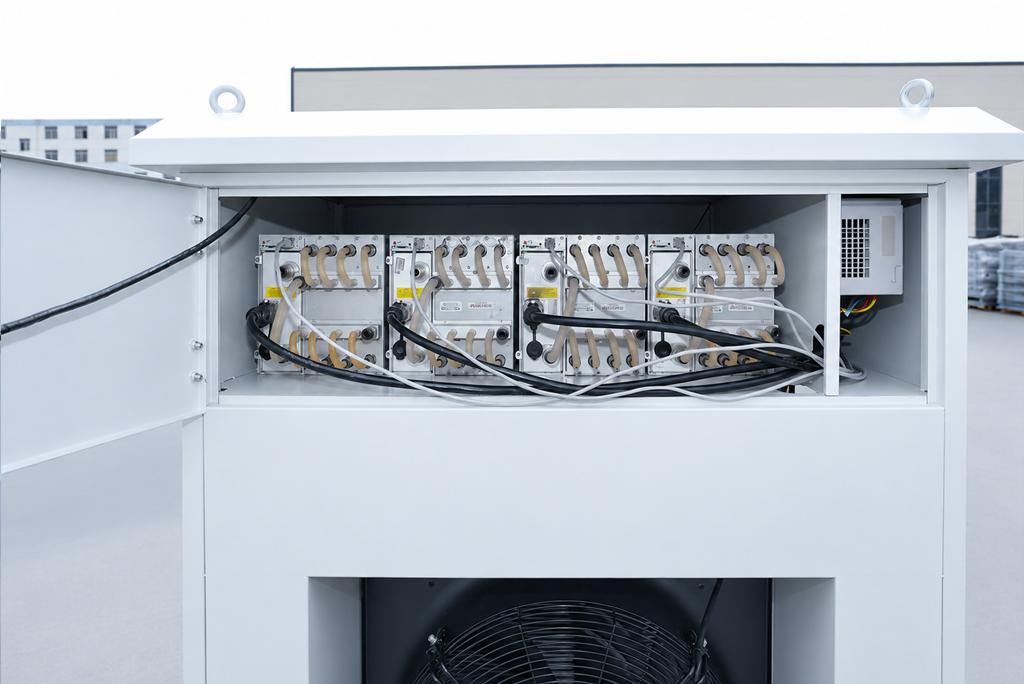

01. Two-Level Integrated Design

The cabinet is built in two levels, with four Antminer hydro units positioned in the upper section and the dry cooler integrated directly underneath. This vertical layout combines mining and heat dissipation in one compact structure, making full use of the available floor space.

4-position Antminer Hydro Cooling Cabinet

02. Four Dedicated Slots

Four dedicated positions are designed for Antminer hydro units, with the power and water connections arranged around each slot. The fixed layout keeps the miners properly positioned and makes installation more straightforward.

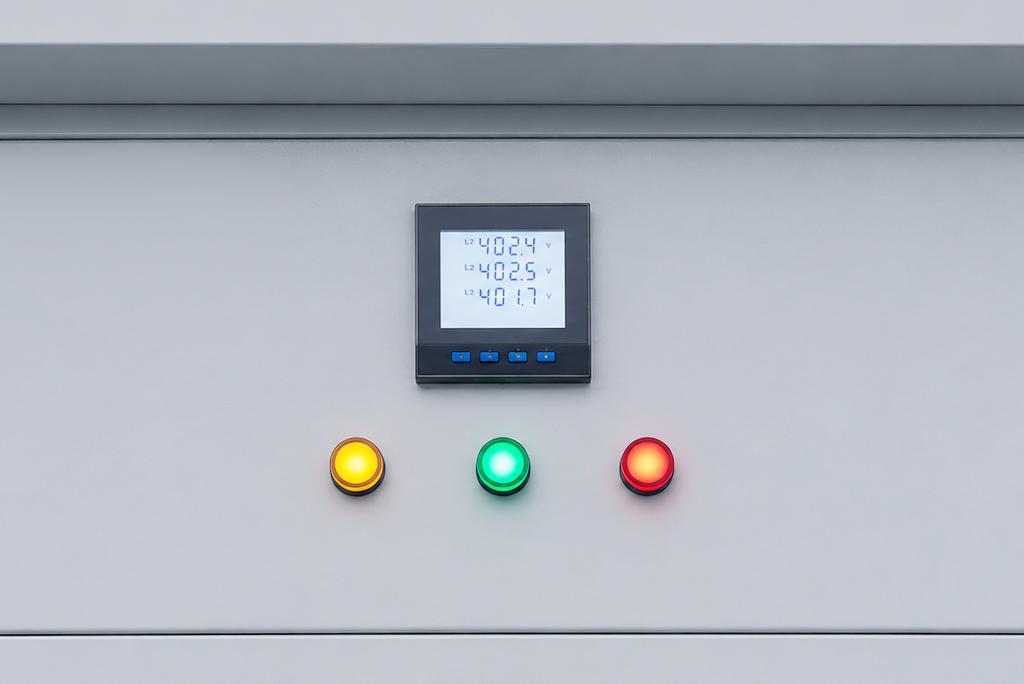

03. Front-Panel Display

A digital display and status indicators are built into the front panel, providing quick access to key electrical information. Voltage readings and system status can be checked directly from the outside without opening the cabinet.

Antminer Hydro Cooling Cabinet for bitcoin mining

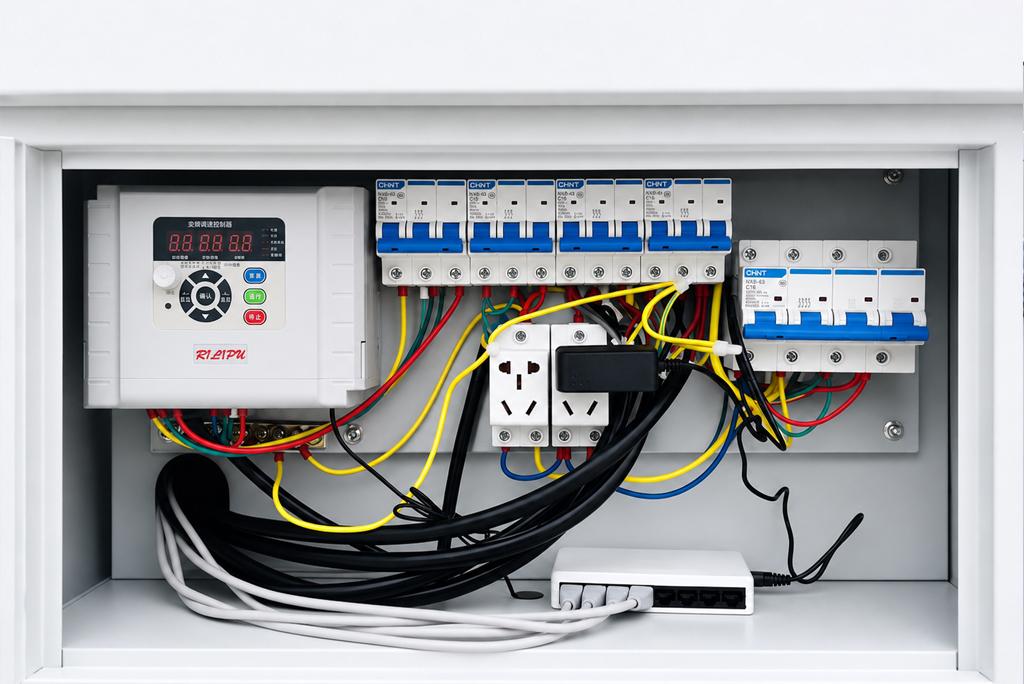

04. Integrated Control & Protection

The electrical section includes individual circuit breakers for each miner, providing separate branch protection across the four slots. A built-in fan speed controller also allows cooling airflow to be adjusted according to operating conditions.

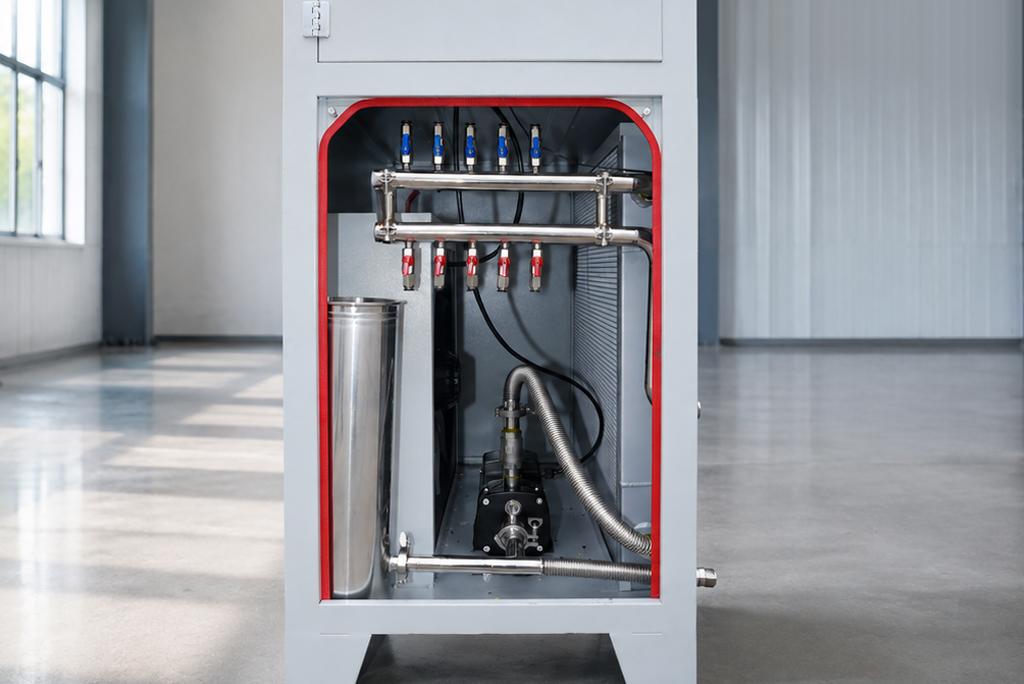

05. Side-Mounted Pump System

A dedicated high-flow pump drives coolant through the four miner loops and sends the heated liquid to the dry cooler for heat dissipation. The pump is positioned on the cabinet side for direct access, keeping the circulation system independent from the main miner section.

06. Integrated Dry Cooler

The lower section houses a dedicated dry cooler designed to handle the system’s 26kW heat load. Built into the same frame as the miner cabinet, it provides a compact vertical cooling structure while keeping heat dissipation separate from the mining area.

Full Specifications

External dimensions

L:700mm、W:800mm、H:1390mm

Internal dimensions

L:1020mm、W:650mm、H:1350mm

Weight

210KG

Model	AP-H4	Installed capacity	4 Seat
Heat Dissipation Capacity	26 kW	Circulation Mode	Single Mode / Dual Mode
Coolant	Pure Water / Soft water + Antifreeze + Corrosion Inhibitor	Max Inlet/Outlet Temp	40 / 50 °C
Fluid Flow Rate	2 m³/h	Input /Output Voltage	3 Phase 380-415V 50/60Hz
Ambient Temp	-25°C ~ 45°C	Design Pressure	0.3 MPa
Cabinet Dimensions	1,070mm(L) * 7,00mm(W) * 1,390mm(H)	Weight	210 KG

4-Slot Antminer Hydro Cooling Rack Product Brochure

Complete product specifications, installation guide, and operational instructions.

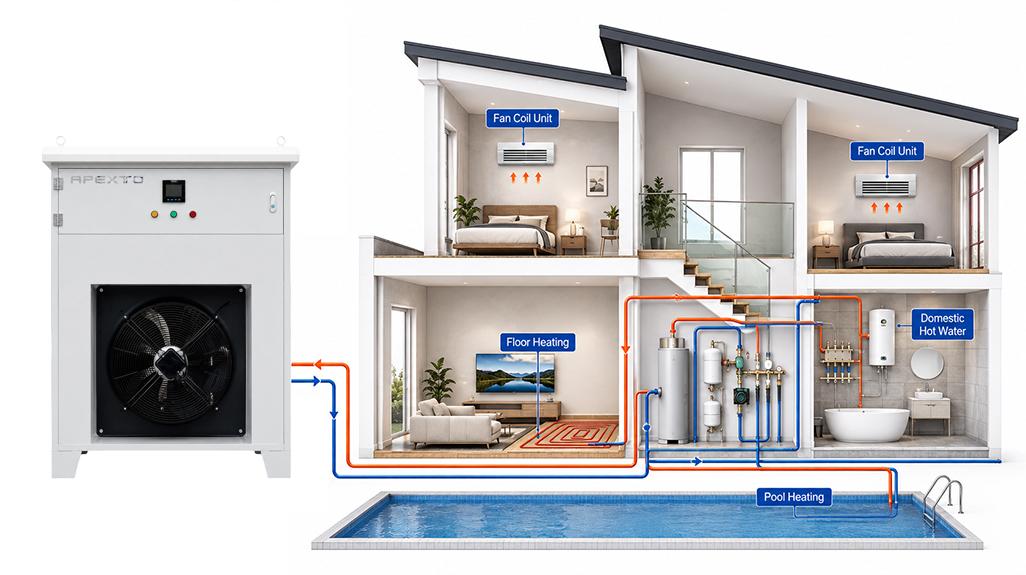

Hydronic Heat Recovery Solution

Hydro cooling systems that double as flexible heating solutions—turning mining heat into efficient warmth anywhere it's needed.

Key Benefits & Applications:

Versatile Heating Integration: Seamlessly supports underfloor heating, radiators, swimming pools, and other applications—offering efficient warmth across different environments.
Customizable Options: Heating modules can be tailored to match your building layout, heating system, and specific usage requirements.
Energy Reuse: Repurpose mining-generated heat to reduce energy waste and lower overall heating costs.

H4-Home mining Hydronic Heating Solution

Complete Cooling Solutions

We design and manufacture a complete range of hydro cooling solutions for every scale, from hydro cooling cabinets and containers to CDUs and dry coolers.

❄️ Cooling Capacity

⚙️ Miner Slots

📏 Dimensions (L × W × H)

🏢 Application

Compare

4-Slot Antminer Hydro Cooling Rack

26 kW

4 Slots

1,070 × 7,00 × 1,390 mm

Compact Entry-Level Mining

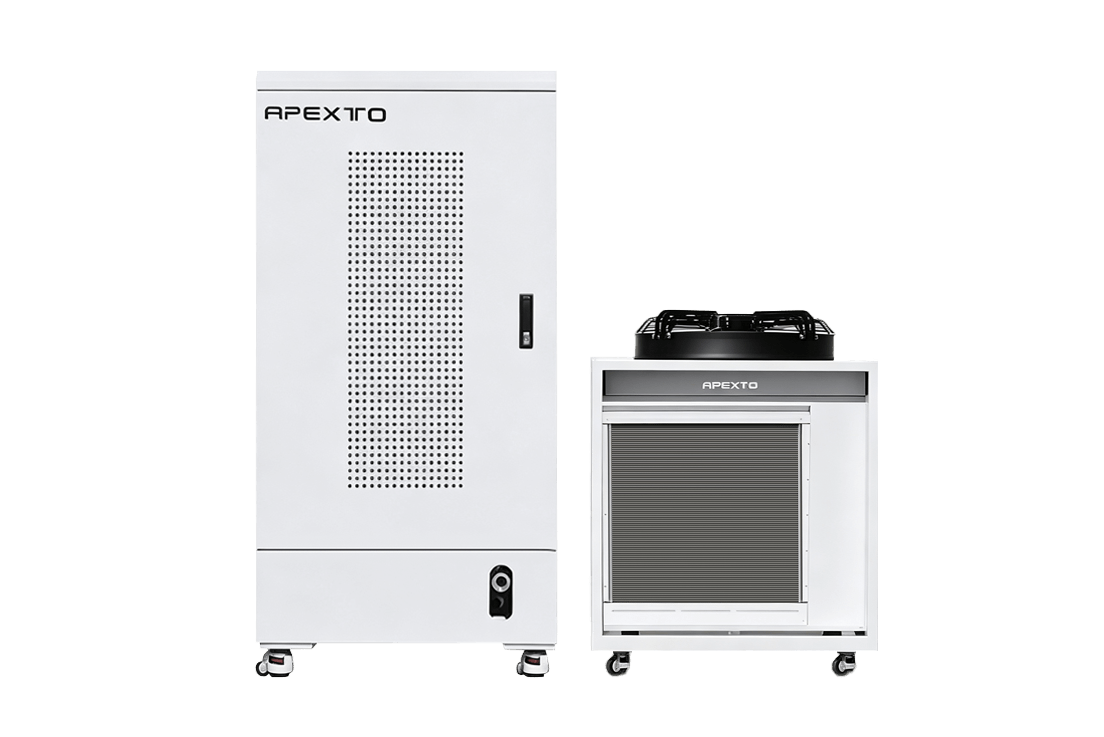

6-Slot Antminer Hydro Cooling Rack

35 kW

6 Slots

8,00 × 8,00 × 1,450 mm

Standard Garage Operations

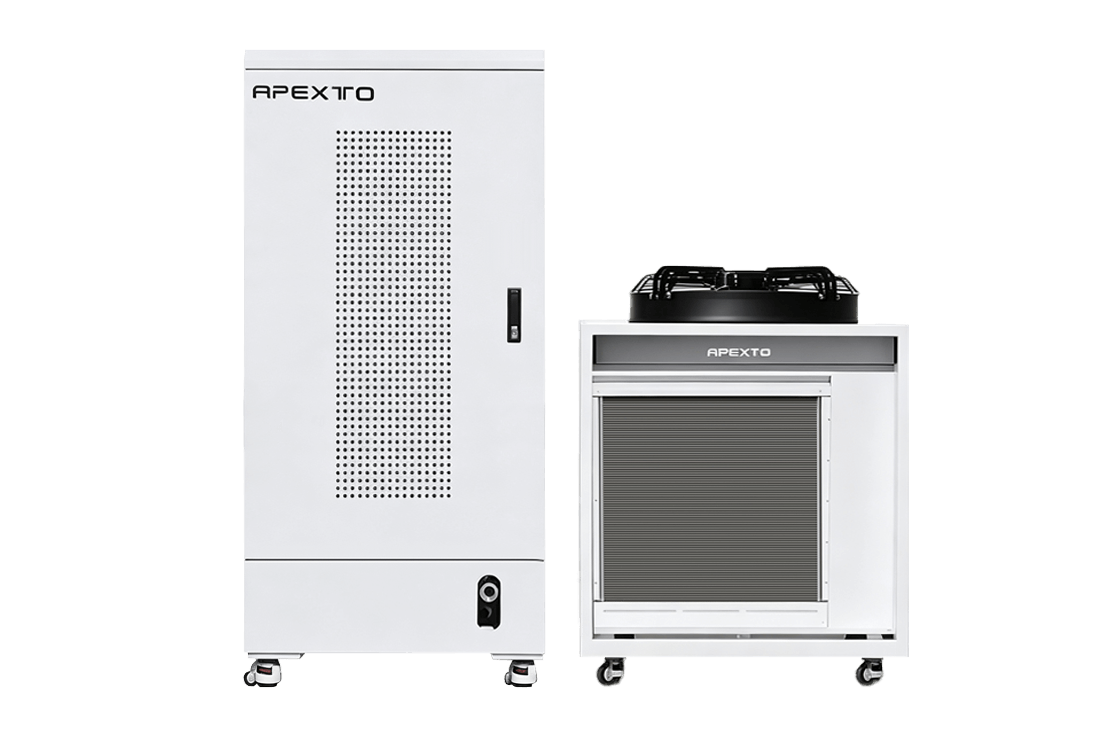

AP-H9 Water Cooler liquid cooling system

9-Slot Antminer Hydro Cooling Rack

50 kW

9 Slots

8,00 × 8,00 × 1,600 mm

Professional Home Setups

12-Slot Antminer Hydro Cooling Rack

70 kW

12 Slots

7,00 × 8,00 × 1,800 mm

High-Capacity Home Mining

Real Results from Real Miners

View All >>

Antminer Hydro cooling home Mining Rack Deployment Case Study

London, United Kingdom

1 x 26kW Home Office Project

Running a small-scale hashing station in an urban home office without any building modifications.

-40%

Noise Reduction

100%

Heat Exported

1.2㎡

Floor Space Used

4-Slot Antminer Hydro Miner Home Mining Deployment

Seoul, South Korea

15 x 26kW Hardware Testing Lab

Providing a dedicated, standalone hydro cooling environment for R&D and machine performance testing.

0

Construction Required

-30%

Setup Time

99.9%

Operational Uptime

View All >>

“

"We use several of these 26kW racks in our tech lab for testing new firmware and hardware. Since it’s a standalone unit, we didn't have to install any permanent water lines in our office. It keeps the test miners at a steady temperature and the digital voltage display makes it easy to monitor everything at a glance."

— Technical Lead, Seoul Testing Facility

"I needed a setup that wouldn't take up my entire balcony or storage room. This 4-slot unit is extremely compact because the cooler is built right into the base. It’s quiet enough for my apartment, and the vertical design keeps all the hoses tucked away. It was a very straightforward way to get my first few hydro miners running."

— Home Hobbyist, London Site

Global Deployment

1.2+ GW

Cumulative delivered cooling capacity

Serving Mining Sites

50+

Countries and regions covered

4-Slot Home Hydro Cooling Rack FAQs

Can this cooling system run four Antminer Hydro miners at the same time?

Yes. The system has 4 miner slots and supports compatible Antminer S19, S21, and S23 Hydro miners. The total power consumption of the installed miners should remain within the system's 26kW maximum load.

Is 26kW enough for four high-power Antminer Hydro miners?

It depends on the miner model and actual power consumption. For example, four Antminer S21 XP Hydro 473T miners consume about 22.7kW at their typical rated power, which is within the 26kW system capacity.*For higher-power, overclocked, or future Hydro models, check the combined miner power before installation.

Can I mix different Antminer Hydro models in the same cooling system?

Yes, compatible S19, S21, and S23 Hydro series miners can be used in the same system, provided their cooling connections and operating requirements are compatible and the combined power load does not exceed 26kW.

What power supply is required?

The standard system is designed for 3-phase 380V, 50Hz power.

Antminer Hydro miners also require three-phase power. If your site uses 400V, 415V, 480V, 60Hz, or residential 220–240V power, please confirm the electrical configuration before ordering rather than connecting the system directly.

Does the system require a separate dry cooler?

No. The cooling fans and heat-dissipation system are integrated directly into the cabinet, so no separate external dry cooler is required.

This all-in-one design simplifies installation and reduces the amount of external piping and cooling equipment needed on site.

Can the cooling system be installed outdoors?

Yes. The integrated system can be installed outdoors, provided there is sufficient ventilation and open space around the cabinet for proper airflow and heat dissipation.

Avoid placing the unit in enclosed or poorly ventilated areas, as restricted airflow can reduce cooling performance, especially during hot weather.

What coolant should I use, and does the system require regular maintenance?

Use suitable pure water, deionized water, or properly treated soft water with antifreeze and corrosion inhibitor according to the installation environment.

Regular maintenance mainly includes checking coolant quality and level, water flow, pumps, hoses, quick connectors, leaks, and keeping the dry cooler clean and unobstructed.

Can the heat from the miners be reused for home or pool heating?

Yes. A heat-recovery configuration is available.

With the appropriate circulation pump and heat exchanger, waste heat from the miners can be transferred to applications such as home heating, underfloor heating, swimming pools, greenhouses, or other hot-water heating systems.

Does the system require a separate dry cooler?

No. The cooling fans and heat-dissipation system are integrated directly into the cabinet, so no separate external dry cooler is required.

This all-in-one design simplifies installation and reduces the amount of external piping and cooling equipment needed on site.
